Scene Compare
Scene/Utility

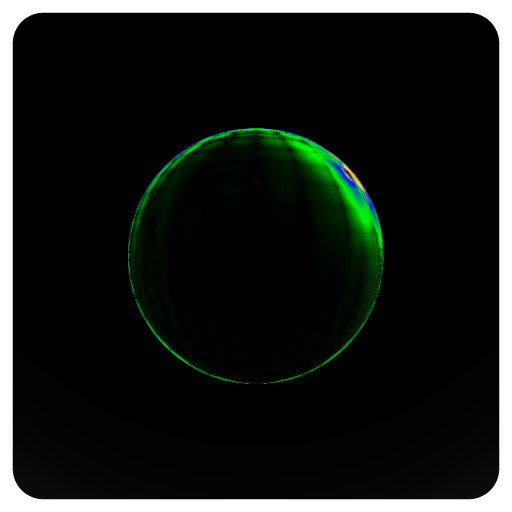

Compares both input scenes to each other and generates heat maps that represent the comparision error as well as numerical error values.
This node is useful if your want to observe changes to your scenes in an automated pipeline.
Input Parameters
- SceneA Scene
- ScenePathA String
- SceneB Scene
- ScenePathB String
- PathIncludeChildren Boolean
- ViewMode Enum
- CustomUVImage Boolean
- UVImage Image
Image Based Lighting
- EnvironmentMode Enum
- EnvironmentMap Image
- EnvironmentIrradiance Image
- EnvironmentRadiance Image
Output Parameters
- IsValid Boolean
Color
- ColorHeatMap Image
- ColorMaximumError Float
- ColorAverageError Float
Depth
- DepthHeatMap Image
- DepthMaximumError Float
- DepthAverageError Float
Normal
- NormalHeatMap Image
- NormalMaximumError Float
- NormalAverageError Float
Silhouette
- SilhouetteHeatMap Image
- SilhouetteMaximumError Float
- SilhouetteAverageError Float
Statistics
- PolygonCountDeltaPercent Float
- PolygonCountDelta Int
- BoundingSphereRadiusDeltaPercent Float
- BoundingSphereRadiusDelta Float
UV
- UVHeatMap Image
- UVMaximumError Float
- UVAverageError Float
Meta
| Author | InstaMaterial GmbH | Category | Scene/Utility | Tooltip | Compares both input scenes to each other and generates heat maps that represent the comparision error as well as numerical error values. > This node is useful if your want to observe changes to your scenes in an automated pipeline. | Name | Scene Compare | Version | 1.39 | ID | af438822-f6c2-43fa-a613-25e9d3333e24 | PackageUrl | pkg://962c4df1-12ce-495a-bfa1-33396c992ea6/atoms/af438822-f6c2-43fa-a613-25e9d3333e24.atom |
|---|
