Color to Grayscale

Converts the input image to a greyscale image.

Input Parameters

• Image Image
• Mode Enum · Relative, Perceived, Desaturation, Average, Min, Max, Red, Green, Blue, Alpha, AlphaMask, CustomWeights, Hue, Saturation
  Color conversion mode such as: desaturation mode will set saturation to zero, perceived and relative will use the Luminance weights while other modes will perform an arithmetic operation per each channel.
• FilteringMode Enum · Nearest, Linear
• MaskThreshold Float · Range 0.00 → 1.00
• RedWeight Float · Range 0.00 → 1.00
• GreenWeight Float · Range 0.00 → 1.00
• BlueWeight Float · Range 0.00 → 1.00
• AlphaWeight Float · Range 0.00 → 1.00
• MultiplyAlpha Boolean
• SRGB Boolean

Output Parameters

• Output Output Image Grayscale

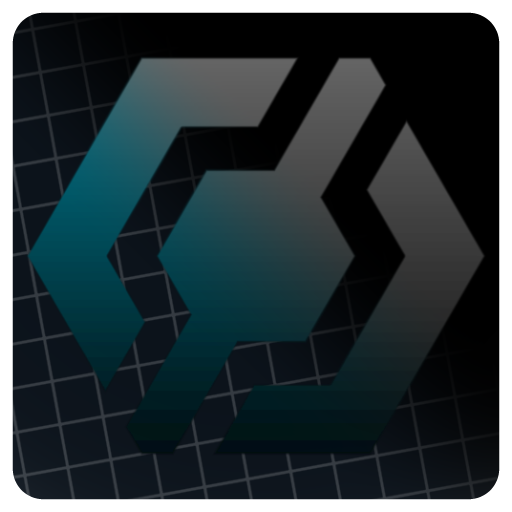

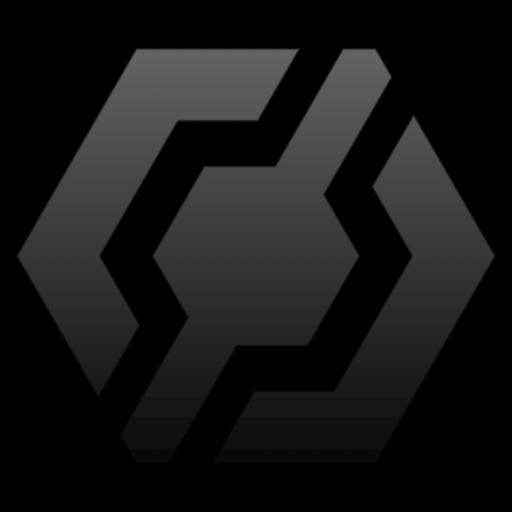

Example

Meta
