Mesh Array
Mesh/Modifier

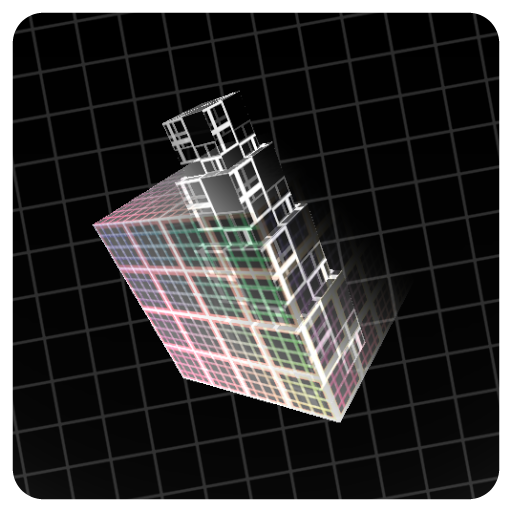

Creates an array of copies of the input mesh, with each copy being transformed according to it's index.
Each new mesh spawned will be attached to the SourcePivot in the current buffer based on the specified TargetPivot.
Input Parameters
- MeshCount Uint
- Mesh Mesh
- Translate Vec3
- Rotate Vec3
- Scale Vec3
- NormalizedPosition Boolean
- SourcePivot Vec3
- TargetPivot Vec3
Output Parameters
- Output Mesh
Meta
| Author | InstaMaterial GmbH | Category | Mesh/Modifier | Tooltip | Creates an array of copies of the input mesh, with each copy being transformed according to it's index. Each new mesh spawned will be attached to the SourcePivot in the current buffer based on the specified TargetPivot. | Name | Mesh Array | Version | 1.44 | ID | ca647bba-7259-42de-9abf-33aadb8138a9 | PackageUrl | pkg://c65fc5a6-f746-440d-8ee8-884d0cbf67e1/atoms/ca647bba-7259-42de-9abf-33aadb8138a9.atom |
|---|
