Bevel

Performs an inner or outward bevel effect on the grayscale image.

Input Parameters

• Input Image Gray
• ProfileInput Image Gray
• InputType Enum · BlackWhiteMask, GrayscaleMask
  The input type determines if a binary mask (i.e. will use binary values) or grayscale is used. The binary mask will be much faster than grayscale version but will suffer from aliasing artifacts compared to the grayscale.
• Mode Enum · Inward, Outward, InputProfile
• JointMode Enum · Round, Square, Angular
• SamplingModeU Enum · Repeat, Clamped
• SamplingModeV Enum · Repeat, Clamped
• Distance Float · Range 0.00 → 1.00
• Softness Float · Range 0.00 → 1.00
• FilteredSoftness Boolean
  Applies a small filter on the result to reduce aliasing.
• MaskSoftness Boolean
• SoftMask Boolean
  Increases the quality and precision of the bevel for grayscale images at the expense of performance, useful for masks which have a large radius for the softness.
• InvertMask Boolean

Output Parameters

• Height Image Gray

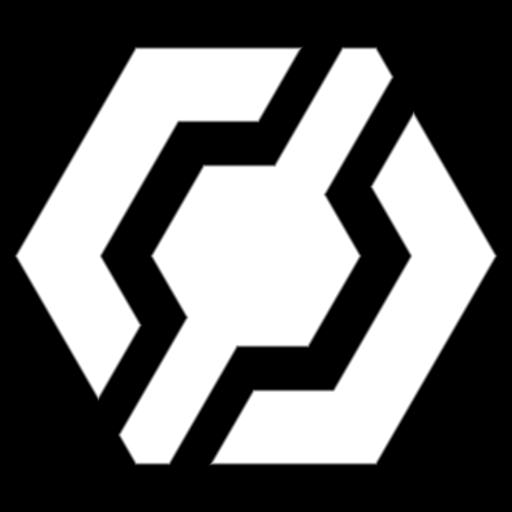

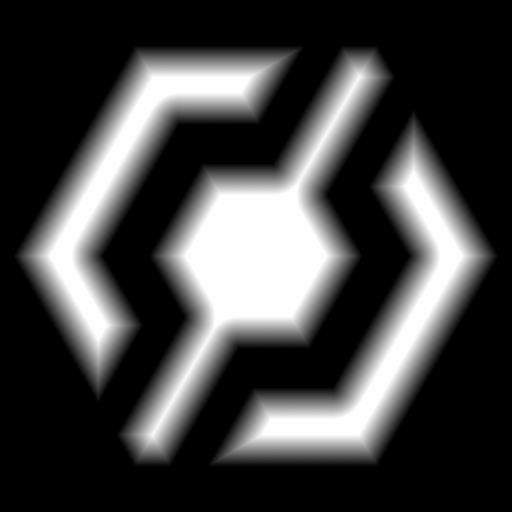

Example
