Gradient Ramp

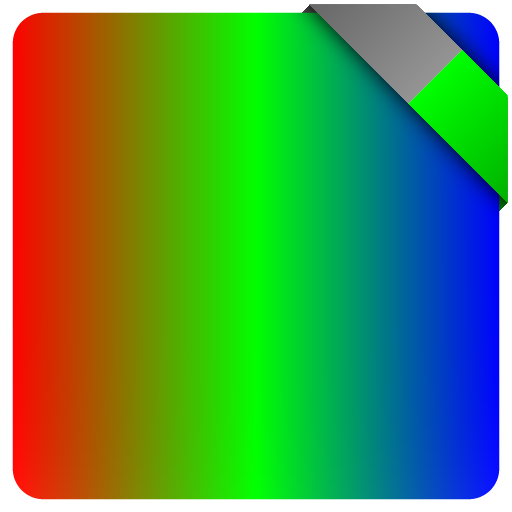

The Gradient Ramp atom generates a color specturm.

The node offers great UX by providing a built-in widget to control the color spectrum that is used for the mapping. Additionally, individual points and offsets can be exposed to allow for user control. If more than 16 stops are needed, the Gradient Ramp Dynamic can be used instead.

The node provides a "Quick Action" to quickly convert between the Dynamic and regular Gradient Ramp atom.

Input Parameters

• Count Uint · Range 2 → 16
• Rotation Enum · 0°, 90°, 180°, 270°
• Offset Float · Range -1.00 → 1.00
• Color1 Vec4
• Position1 Float · Range 0.00 → 1.00
• Color2 Vec4
• Position2 Float · Range 0.00 → 1.00
• Color3 Vec4
• Position3 Float · Range 0.00 → 1.00
• Color4 Vec4
• Position4 Float · Range 0.00 → 1.00
• Color5 Vec4
• Position5 Float · Range 0.00 → 1.00
• Color6 Vec4
• Position6 Float · Range 0.00 → 1.00
• Color7 Vec4
• Position7 Float · Range 0.00 → 1.00
• Color8 Vec4
• Position8 Float · Range 0.00 → 1.00
• Color9 Vec4
• Position9 Float · Range 0.00 → 1.00
• Color10 Vec4
• Position10 Float · Range 0.00 → 1.00
• Color11 Vec4
• Position11 Float · Range 0.00 → 1.00
• Color12 Vec4
• Position12 Float · Range 0.00 → 1.00
• Color13 Vec4
• Position13 Float · Range 0.00 → 1.00
• Color14 Vec4
• Position14 Float · Range 0.00 → 1.00
• Color15 Vec4
• Position15 Float · Range 0.00 → 1.00
• Color16 Vec4
• Position16 Float · Range 0.00 → 1.00
• SRGB Boolean

Output Parameters

• Output Image
