Height Inflate
Effects/Height
Adjusts a height according to the slope, providing two main modes: outward (i.e. inflation) and inward (i.e. deflation).
In Inward mode, terrain elevation decreases with slope, reducing steeper areas more than flatter ones amd smooths terrain features that can create dunes.
In Outward mode, terrain elevation increases with slope, emphasizing steeper areas over flatter ones and accentuates terrain features.
Input Parameters
- PassCount Uint
- Height Image Gray
- Mode Enum
- Strength Float
- Softness Float
Output Parameters
- Output Image Gray

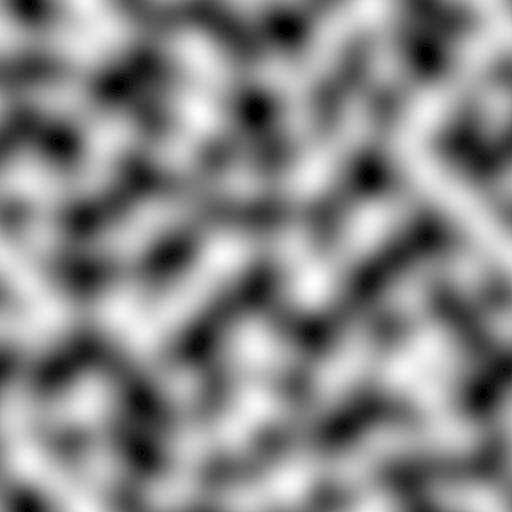

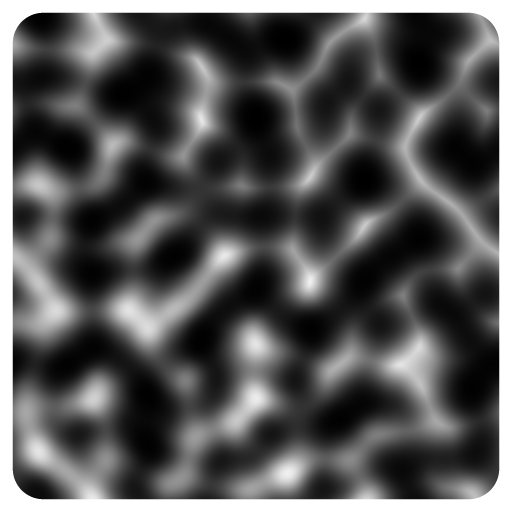

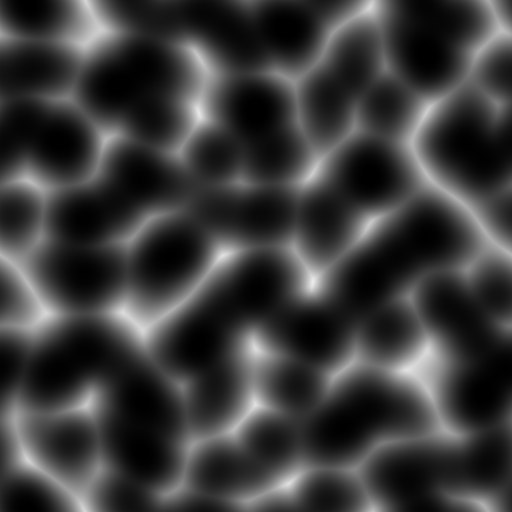

Example
Meta
| Author | InstaMaterial GmbH | Category | Effects/Height | Tooltip | Adjusts a height according to the slope, providing two main modes: outward (i.e. inflation) and inward (i.e. deflation). In Inward mode, terrain elevation decreases with slope, reducing steeper areas more than flatter ones amd smooths terrain features that can create dunes. In Outward mode, terrain elevation increases with slope, emphasizing steeper areas over flatter ones and accentuates terrain features. | Name | Height Inflate | Version | 1.59 | ID | 630f8284-f1ed-43c4-a38a-02d46491ebea | PackageUrl | pkg://1e600f1d-6685-44cd-841d-16ec4a10af24/atoms/630f8284-f1ed-43c4-a38a-02d46491ebea.atom |
|---|
