Height to Angle
Effects/Height
Computes the slope angle of the heightmap, provides a measure of the steepness (or inclination) of the surface or the direction of the slope (also known as aspect).
Input Parameters
- Height Image Grayscale
- Mode Enum · Vertical, DIrection
- GradientMode Enum · Sobel, Forward, Diagonal
- DirectionRange Enum · 180, 360
- Rotation Float
- Strength Float · Range 0.00 → 1.00
- PhysicalSize Float
- PhysicalHeight Float
- WorldUnits Boolean
- Gamma Float · Range 0.01 → 10.00
- OutputLevels Vec2
Output Parameters
- Output Output Image Grayscale

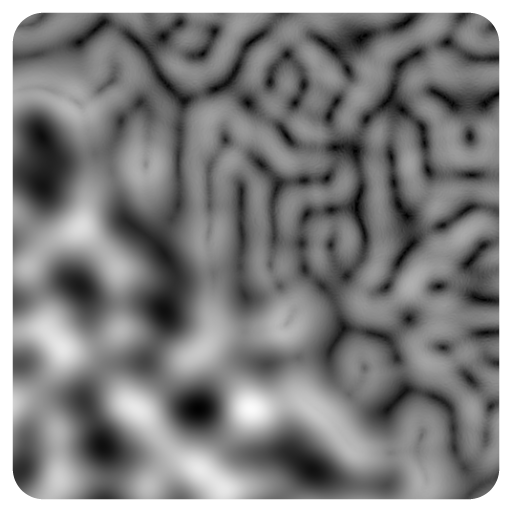

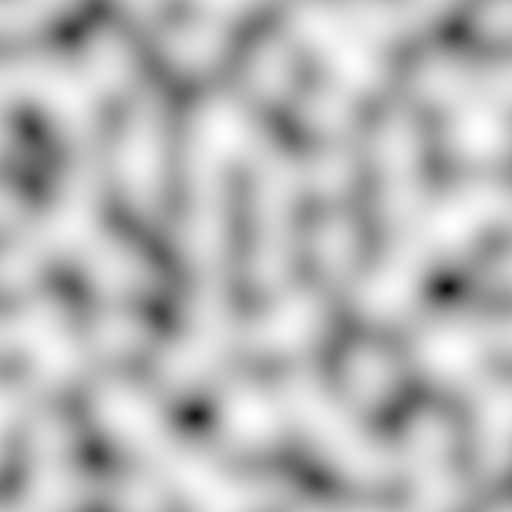

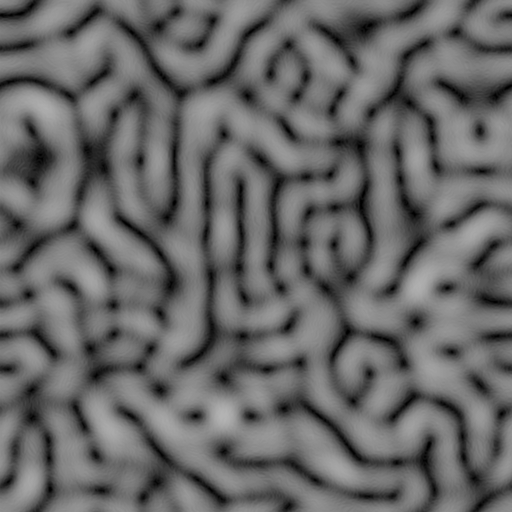

Example
Meta
| Author | InstaMaterial GmbH | Category | Effects/Height | Tooltip | Computes the slope angle of the heightmap, provides a measure of the steepness (or inclination) of the surface or the direction of the slope (also known as aspect). | Name | Height to Angle | Version | 1.88 | ID | fe9c9a9b-3d55-48f5-9714-c9fdf0a49f7c | PackageUrl | pkg://3cf69087-8d6f-4119-8d06-f76d280a091f/atoms/fe9c9a9b-3d55-48f5-9714-c9fdf0a49f7c.atom |
|---|
