Fur

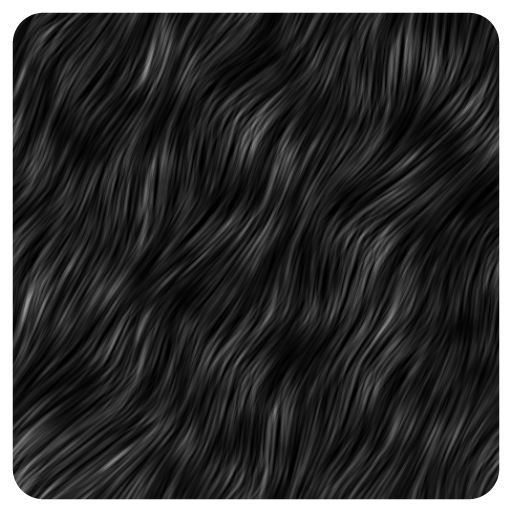

Generates a fur-like procedural pattern, similar to the patterns of animals, carpets or hair.

Input Parameters

• UseGradientInput Boolean
  The UseGradientImage parameter controls the deformation of the vector field, either through a heightmap or by using simple sinusoidals.
• Gradient Image Grayscale
  When UseGradientImage is set to true, the domain will be transformed according to this input image.
• Scale Float
  The Scale parameter controls the scale of the fur. A lower value resembles hair while a larger value resembles shorter, more dense fur.
• Density Float
  When UseGradientImage is set to false, the Density parameter controls the number of fibers.
• Length Float
  When UseGradientImage is set to false, the Length parameter controls the length of the fibers.
• Width Float
• Disorder Float
  When UseGradientImage is set to false, the Disorder parameter controls the overall structure of the fibers.
• Softness Float
  The Softness parameter controls the softness of the fibers at the borders.
• DetailNoiseScale UVec2
• Factor Float · Range 0.01 → 10.00
• OutputLevels Vec2

Output Parameters

• Output Output Image Grayscale
