Iterate
Repeats the input image several times to generate higher frequency details. This is a cheaper alternative to the Image Fractal Sum node.
Input Parameters
- Image Image Gray
- OctaveCount Uint · Range 1 → 5
- OctaveFlip Enum · 0, 45, 90, 135, 180, 225, 270, 315
- Translate Vec2
- Opacity Float · Range 0.00 → 1.00
- OctaveOpacityFactor Float · Range 0.00 → 1.00
- Blend Enum · Default, Average, Add, Subtract, AddSubtract, Multiply, Divide, Minimum, Maximum, ColorBurn, LinearBurn, ColorDodge, LinearDodge, Screen, Overlay, SoftLight, HardLight, VividLight, LinearLight, PinLight, HardMix, Difference, Exclusion, Negation, Glow, Phoenix, Reflect, Hue, Saturation, Color, Luminosity
- Filtering Enum · Bilinear Smooth, Bilinear, Nearest
- Dissolve Boolean
- IgnoreInput Boolean
Dissolve
- FrequencySeparatedDissolve Boolean
- DissolveContrast Float · Range -1.00 → 1.00
- ScaleDissolve UVec2
- BaseScaleDissolve UVec2
Output Parameters
- Output Image Gray

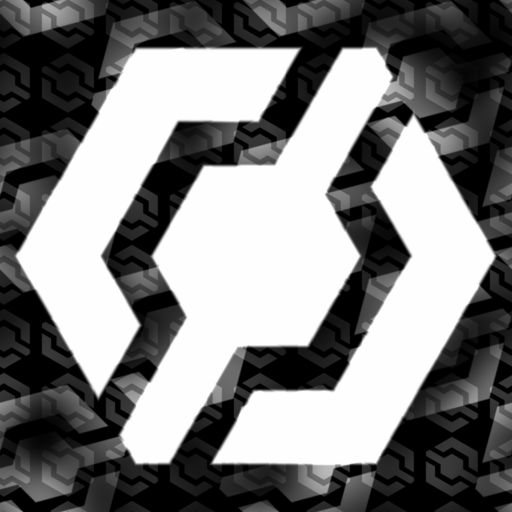

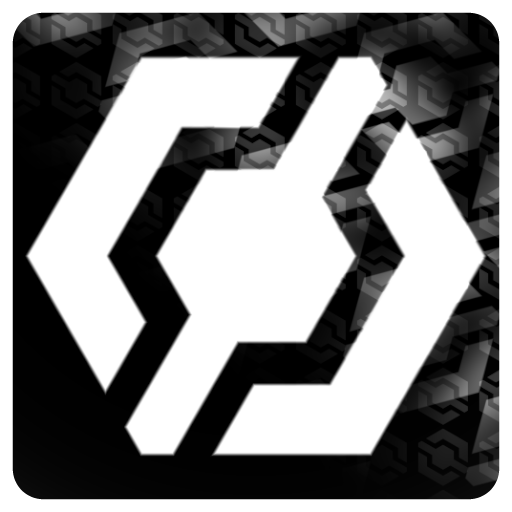

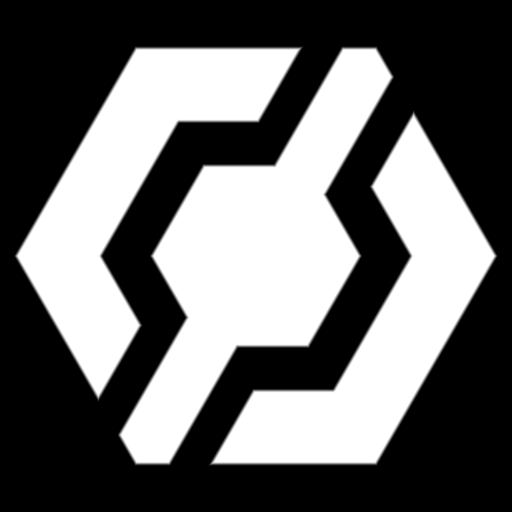

Example
Meta
| Author | InstaMaterial GmbH | Category | Image | Tooltip | Repeats the input image several times to generate higher frequency details. This is a cheaper alternative to the Image Fractal Sum node. | Name | Iterate | Version | 1.38 | ID | cffc2cf6-2779-4ff6-b3f9-7ee863a40679 | PackageUrl | pkg://2721d2b7-3273-4f3a-baac-6a7e700fc9d7/atoms/cffc2cf6-2779-4ff6-b3f9-7ee863a40679.atom |
|---|
