Color to Mask

Creates a grayscale mask from the specified Image using the SourceColor input and a color range selection.

Input Parameters

• Image Image
  The image from which the color ranges will be selected to create a mask.
• SourceColor Image
  The input color image to use to select mask regions.
• KeyingType Enum · Hue, Luma (Y), Chroma (UV), RGB
  The keying type used to isolate the color.
• Range Float · Range 0.00 → 1.00
  The width of the mask range.
• LumaWeight Float · Range 0.00 → 1.00
  Specifies, how much of the Luma is taken into account for Chroma and Hue Keying Types.
• Softness Float · Range 0.00 → 1.00
  Specifies how soft should tha mask falloff be.
• GradientMode Enum · Linear, Smooth
  True if mask softness gradient is linear. False, if gradient is a SmoothStep function.
• MultiplyAlpha Boolean
  True if Image alpha channel is used to create the mask.
• Invert Boolean
  True if the mask should be inverted.

Output Parameters

• Output Output Image Grayscale
  The grayscale mask created for given parameters.

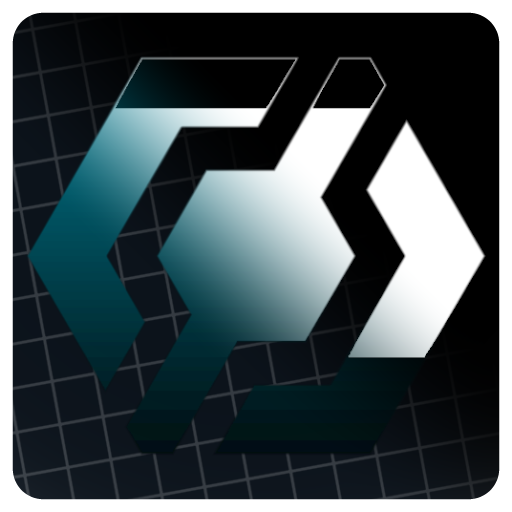

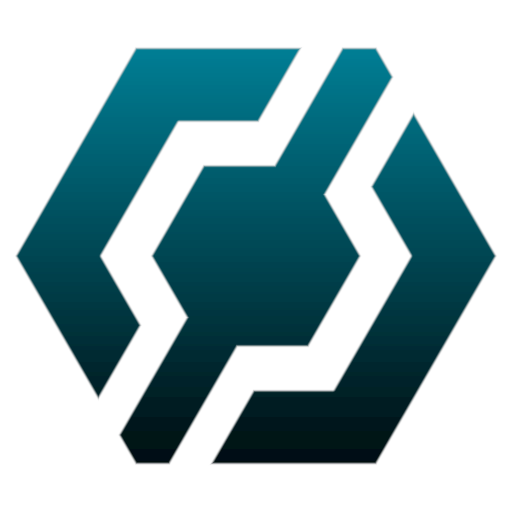

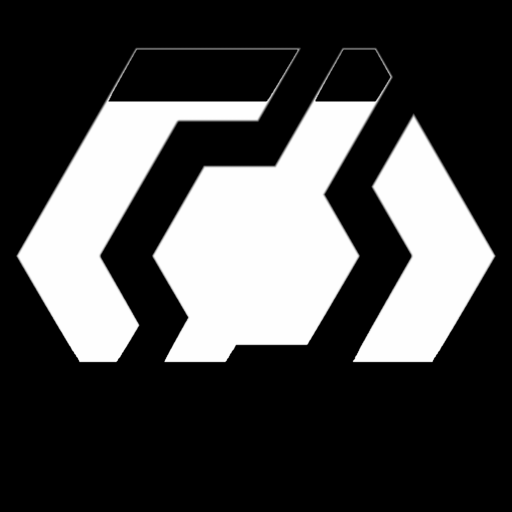

Example
