Checkerboard Diagonal

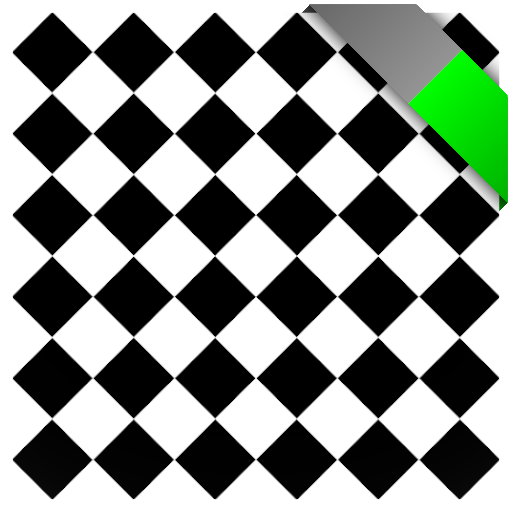

Generates a diagonal version of the classic checkboard fabric pattern.

Input Parameters

• Foreground Image
• FanColor Image
• BoxColor Image
• InnerColor Image
• Background Image
• Pattern Enum · Houndstooth, Arrow, Nailshead1, Nailshead2, Sheperd's Check, Herringbone, Circles1, Circles2, Cross, Fret, Checkerboard, Rhombus, Flower1, Flower2, Squares, Rounded Rhombus, Fan, Wallpaper, Sharkskin, Chevron, Chevron Chaotic, Polka Dot, Greek Wave, Tartan
• Count UVec2
• RepeatCount UVec2
  Sets the domain repetition of the Checkerboard.
• LeafCount Uint · Range 3 → 6
• Mode Enum · Default, 45 Angle, Triangles, Triangles 45, Truchet, Truchet 45
  This parameter sets the mode for the Checkerboard pattern.
• WaveMode Enum · Default, AlternateFlip, AlternateVertical, Rotate45
• UnitSize Float · Range 0.00 → 1.00
• Width Float · Range 0.00 → 1.00
• DiagonalWidth Float · Range 0.00 → 1.00
• HorizontalWidth Float · Range 0.00 → 1.00
  This parameter sets the width of the horizontal lines.
• Height Float · Range 0.00 → 1.00
  This parameter sets the vertical length of the Herrinbone pattern's tiles.
• Depth Float · Range 0.00 → 1.00
• Scale Float · Range 0.00 → 1.00
  When the UniformScale parameter is set to false, this parameter controls the difference in scale between the X and Y axes.
• Variance Float · Range 0.00 → 1.00
• Size Float · Range 0.00 → 1.00
• SizeVariance Float · Range 0.00 → 1.00
  This parameter sets how random are the sizes of each of the circles.
• CircleSize Float · Range 0.00 → 1.00
• Roundness Float · Range 0.00 → 1.00
  This parameter sets the roundness of the boxes.
• Softness Float · Range 0.00 → 1.00
  This parameter sets the softness/blur of the Checkerboard.
• SoftnessXY Vec2
  This parameter sets how blurry is the cross pattern.
• BorderTop Boolean
• Rotate45 Boolean
  Rotate at a 45 degree angle the texture.
• Flip Boolean
  This parameter rotates the pattern's direction.
• Vertical Boolean
  This parameter sets if the zig-zag pattern goes vertically or horizontally.
• Ring Boolean
  This parameter when set to true will create circles with a hole in the center/ring.
• RingWidth Float · Range 0.00 → 1.00
  This parameter sets the thickness of the ring.
• RingVariance Float · Range 0.00 → 1.00
  This parameter sets how variant are each of the rings.
• Invert Boolean

Output Parameters

• Output Output Image
