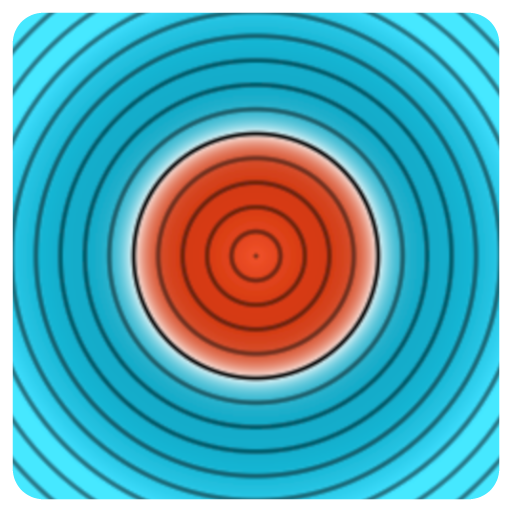

SDF Shape

Creates a distance field of a shape with configurable transformation and UV coordinates.

Input Parameters

• Shape Enum · Circle, Box, Rounded Box, Polygon, Ellipse, Equilateral Triangle, Isosceles Triangle, Triangle, Line Segment, Rhombus, Star, Cross, Pie, Trapezoid, Capsule, Rounded X, Arc, Pinwheel, Vesica, Lens
• SideCount Uint · Range 3 → 32
• Size Float · Range 0.01 → 1.00
• InnerSize Float · Range 0.00 → 1.00
• Width Float · Range 0.01 → 1.00
• WidthTop Float · Range 0.00 → 1.00
• WidthBottom Float · Range 0.00 → 1.00
• Height Float · Range 0.01 → 1.00
• Roundness Float · Range 0.00 → 1.00
• CornerRoundness Vec4
• A Vec2
• B Vec2
• C Vec2
• Strength Float · Range 0.00 → 0.99
• ArcAngle Float · Range -1.00 → 1.00
• PinOrientation Float · Range 0.00 → 1.00
• Thickness Float · Range 0.00 → 0.50
• Angle Float · Range 0.00 → 1.00
• Distance Float · Range -1.00 → 1.00
• PositiveRange Boolean
• Rounded Boolean
• AspectFit Boolean

Transform

• Rotate Float
• Scale Vec2
• Center Vec2
• MirrorX Boolean
• MirrorY Boolean

UV Transform

• UVRotate Float
• UVScale Vec2
• UVTranslate Vec2
• ClampUV Boolean

Output Parameters

• SDF Image Gray
• UV Image
